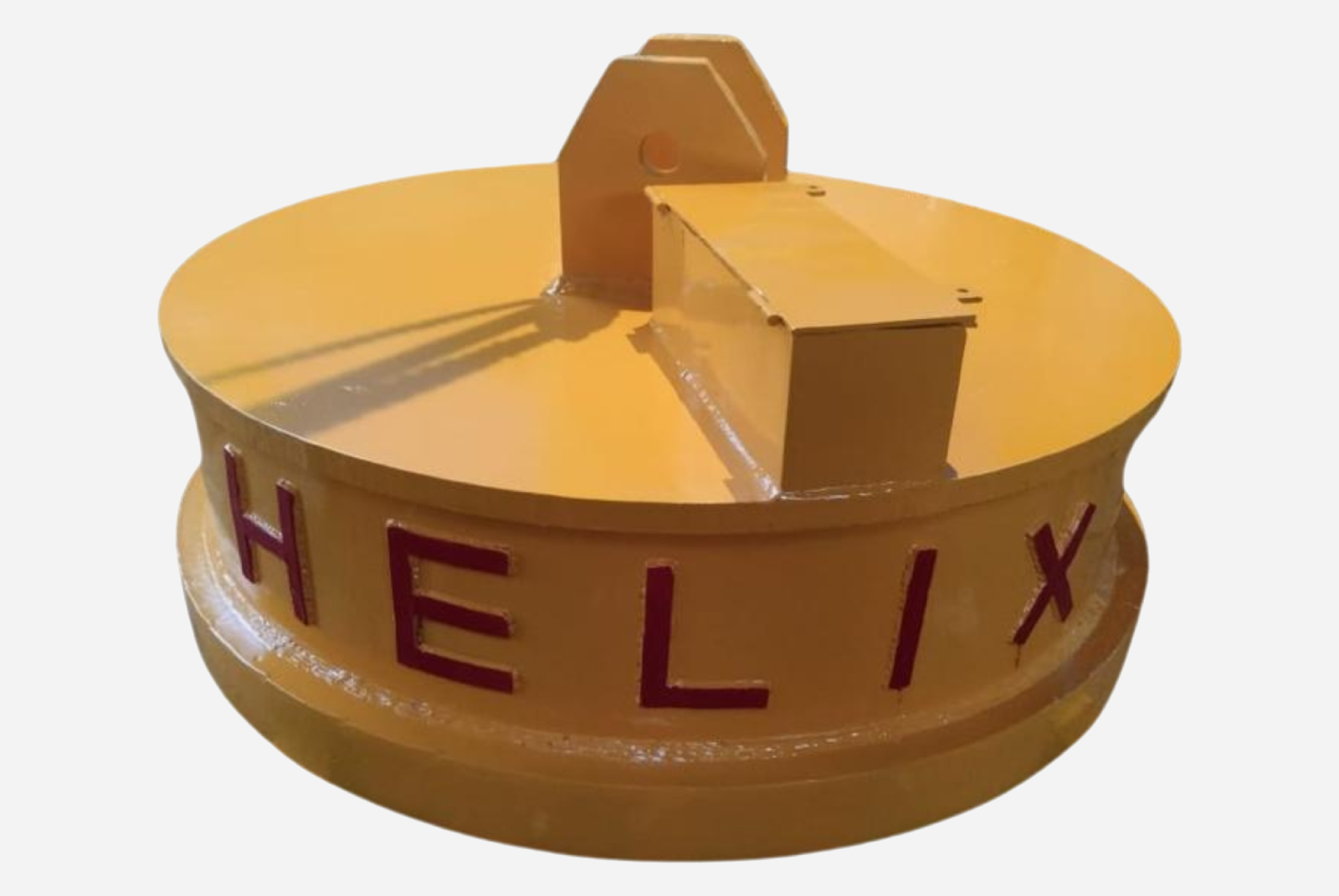

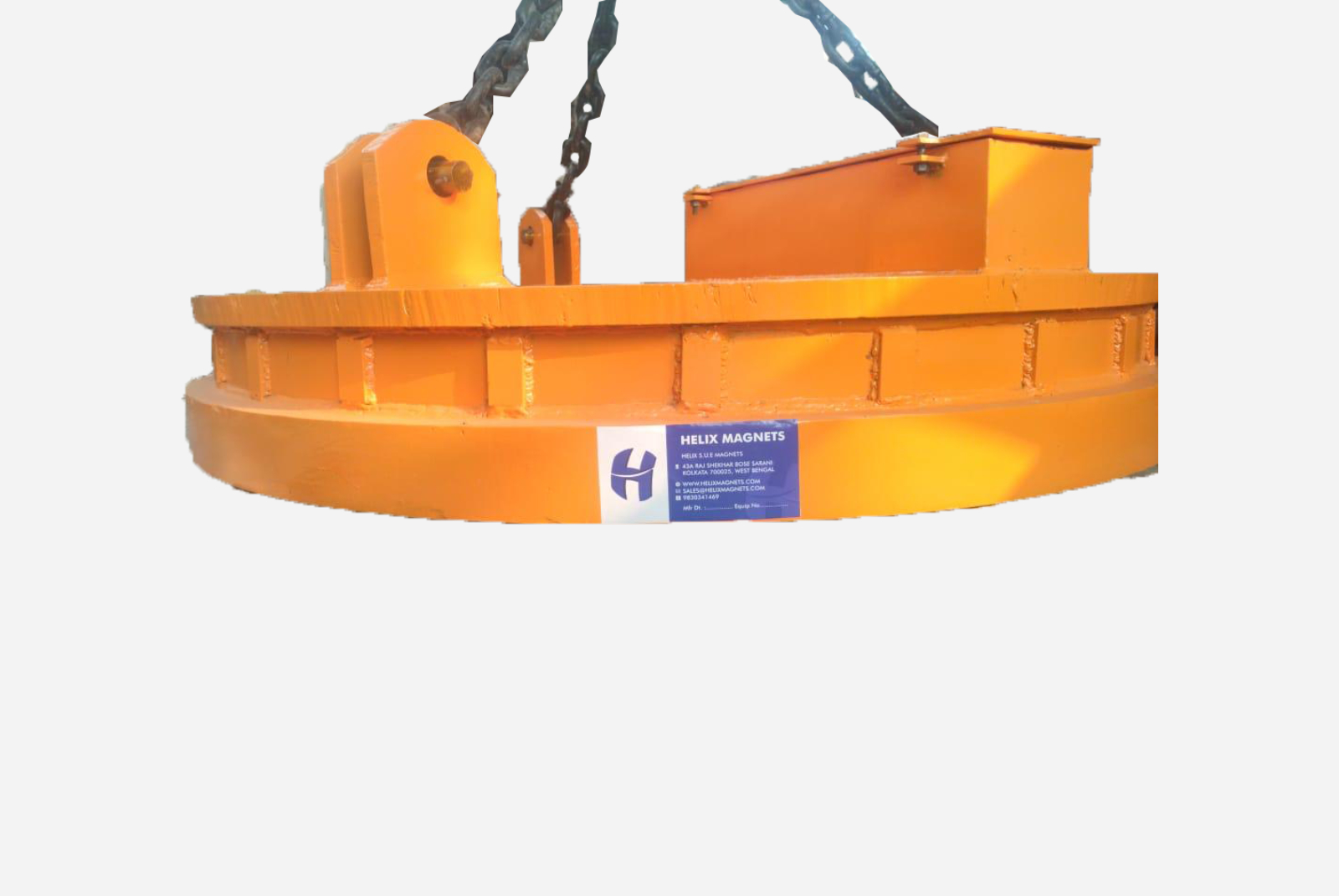

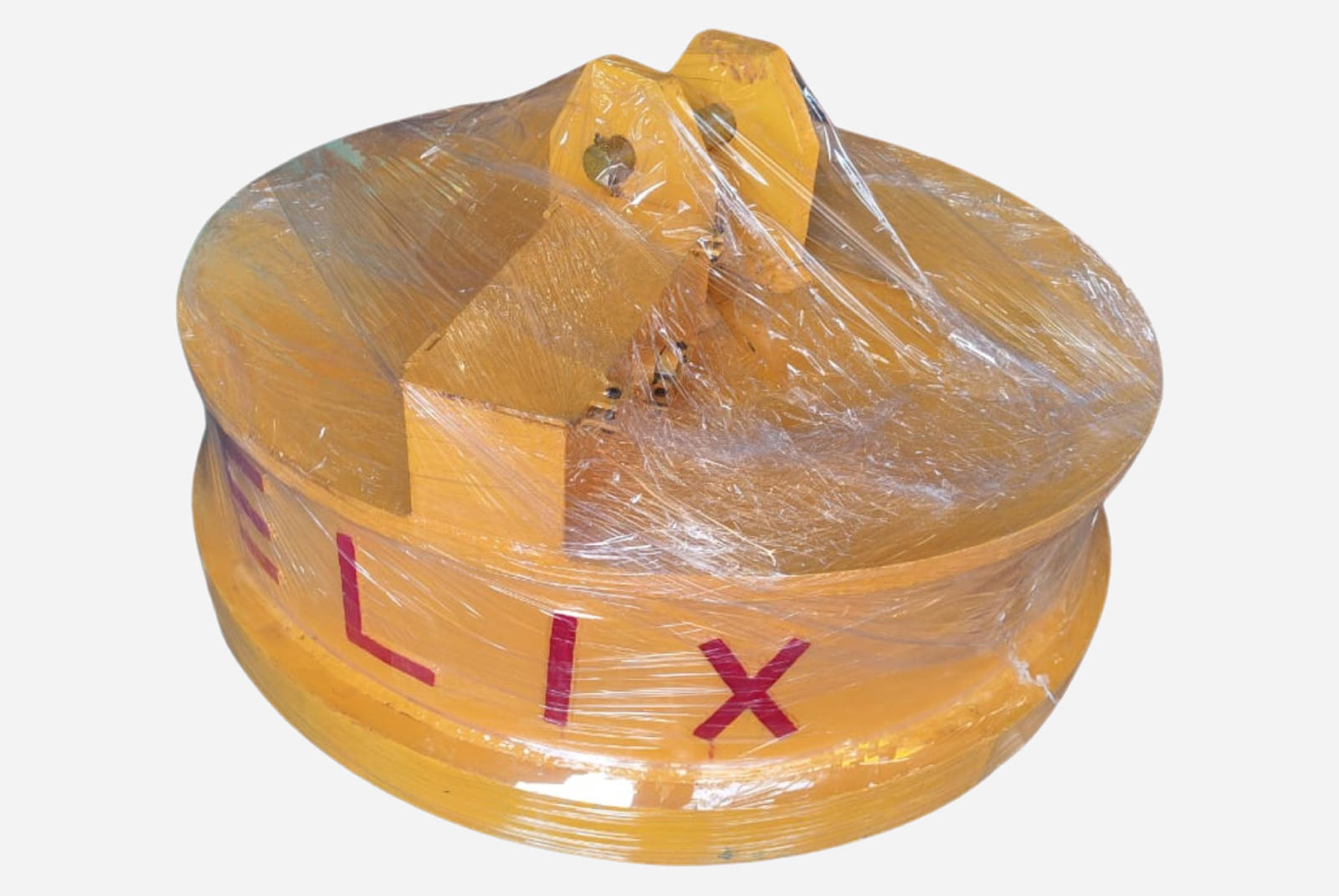

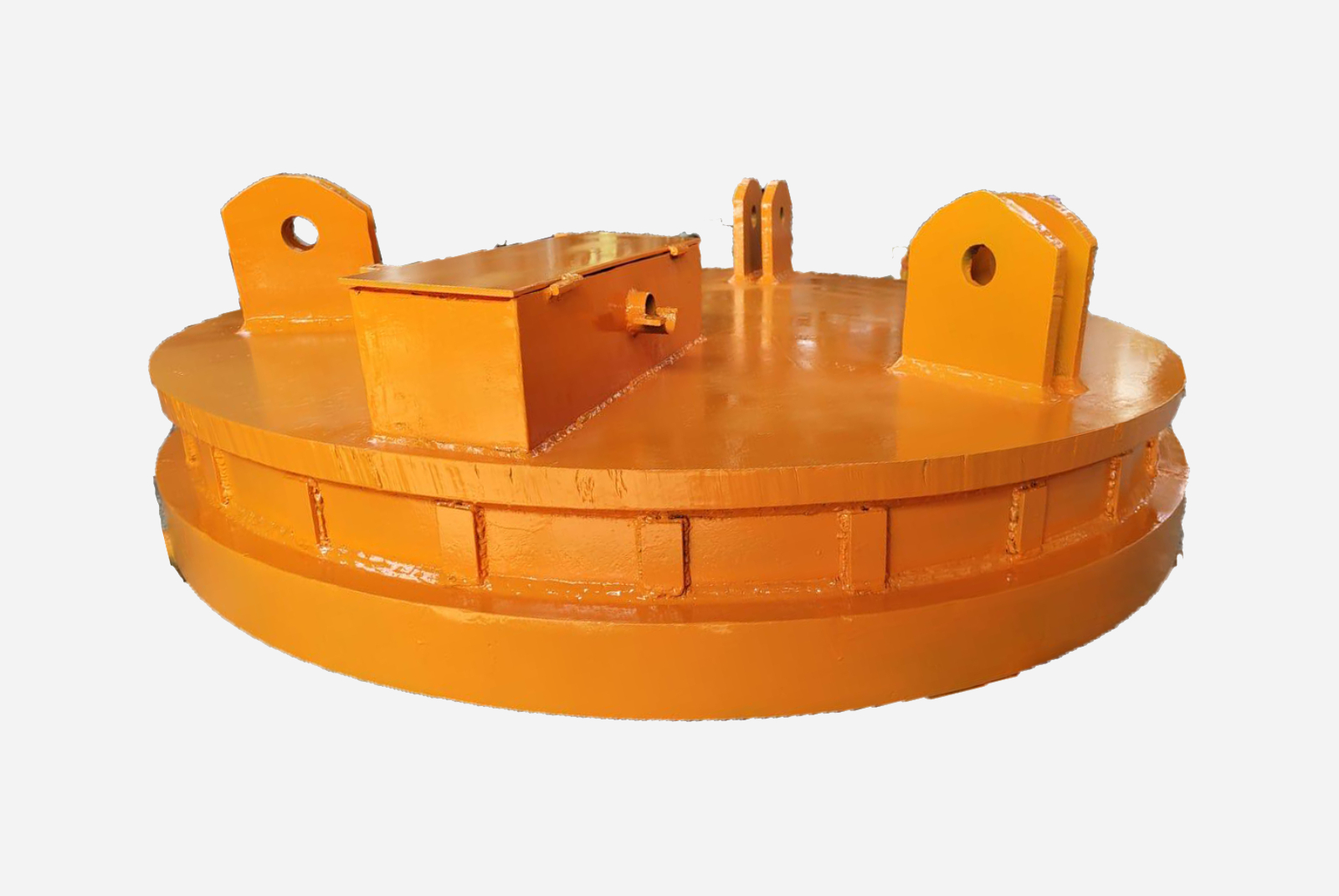

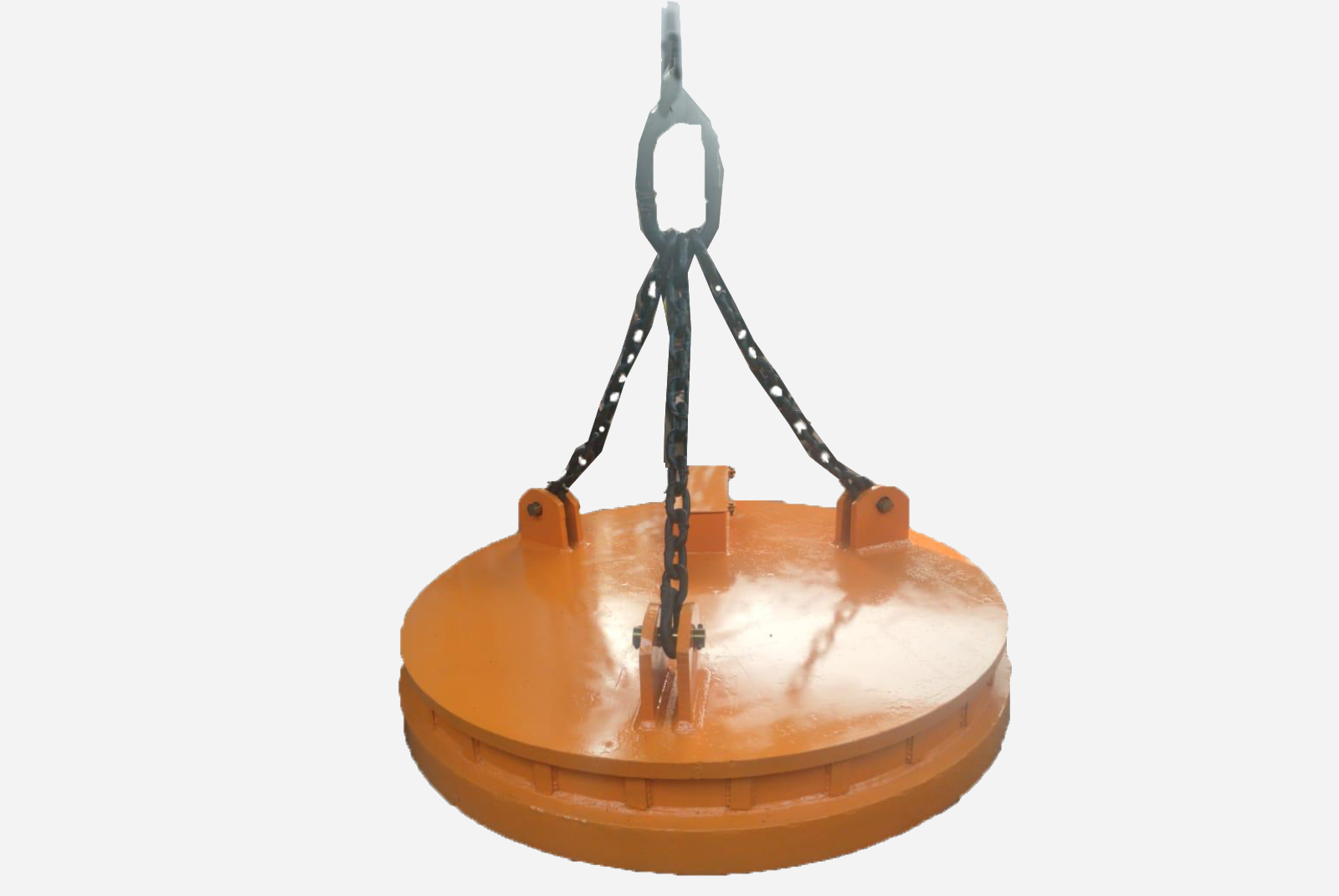

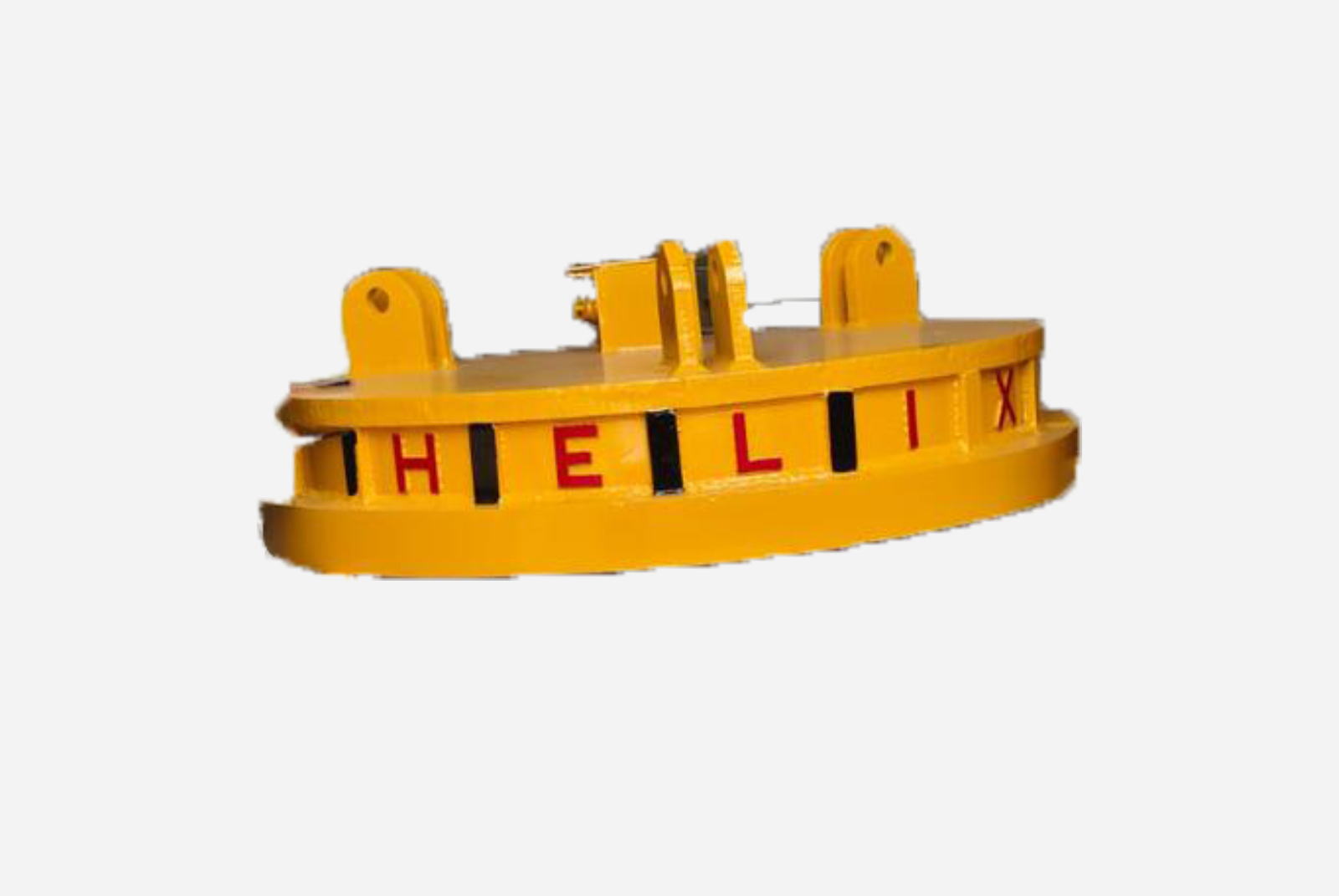

Circular Electro Magnet Lifters offered find wide application in diverse industrial applications and are made available in precision designed finish so as to allow deep penetrating electromagnetic field to easily lift scrap as well as other diversified ferrous metal forms. With our expertise in offering these magnets in different models as well as functional capacities, these generally find usage in meeting the transportation demands of pig iron, scrap in scrap yards, steel blocks, as well as in foundry based applications. Further, with cast housing of the circular electro magnet fabricated using quality cast steel, these are able to provide for excellent conductivity.
The presence of superior quality cover plate also helps in protecting coil as well as in preventing interference with magnetic properties of product.
| At 220 volts D.C. | Approx. Lifting Capacity (In Kgs) | ||||||
|---|---|---|---|---|---|---|---|
| Model No. | Dia (mm) | Wghtb (In Kgs) | Power (K.W) | Hot | Solid Slab | Ball with spcial centre | Heavey Melting Scrap |
| HXACL01 | 700 | 400 | 20 | 10 | 4500 | 2000 | 150 |
| HXACL02 | 900 | 750 | 28 | 20 | 6000 | 3000 | 200 |
| HXACL03 | 1100 | 1400 | 36 | 21 | 8000 | 4000 | 225 |
| HXACL04 | 1300 | 1850 | 46 | 34 | 13600 | 5500 | 550 |
| HXACL05 | 1600 | 3100 | 55 | 40 | 17000 | 8000 | 850 |
| HXACL06 | 1800 | 3800 | 70 | 50 | 22000 | 12000 | 1400 |
