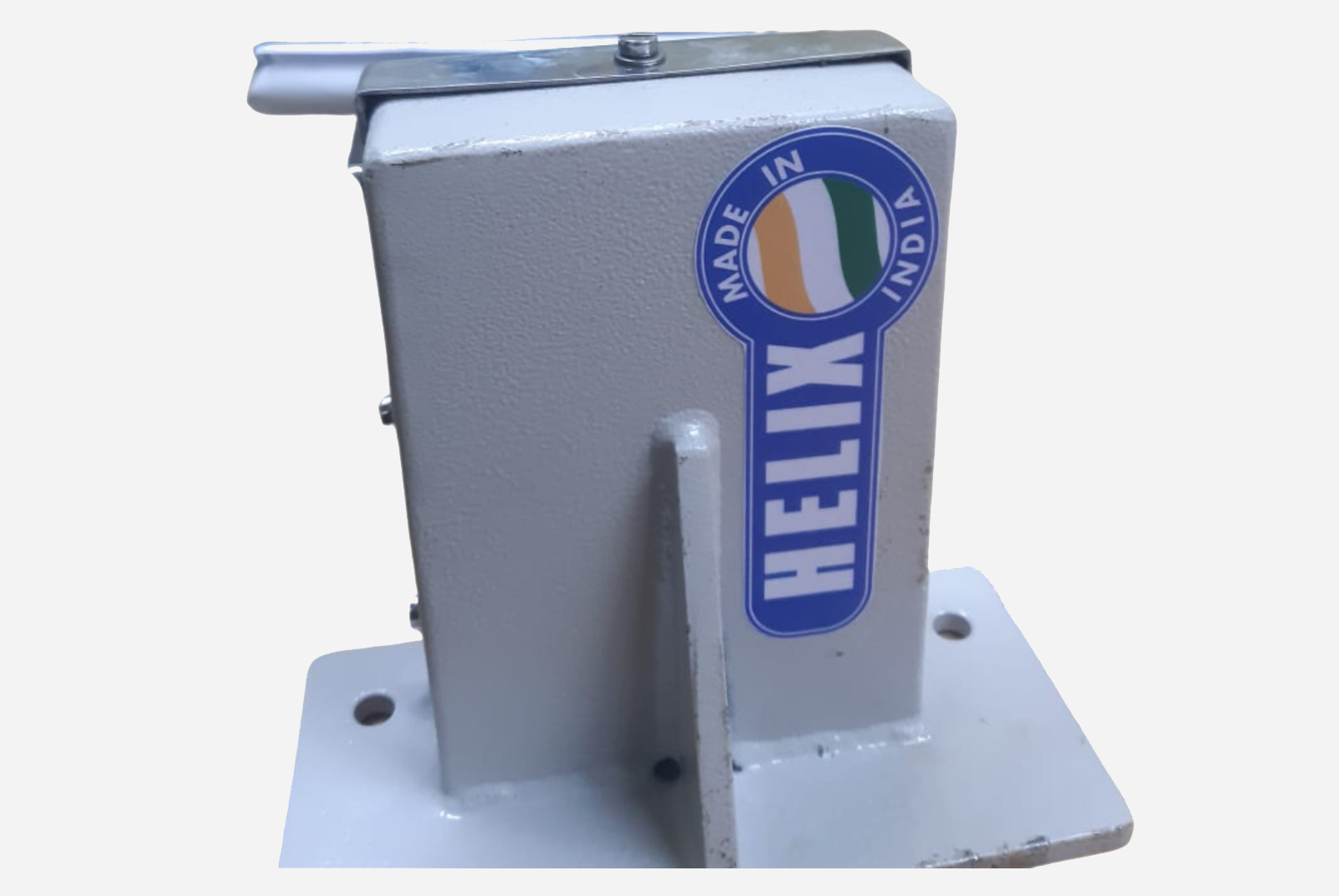

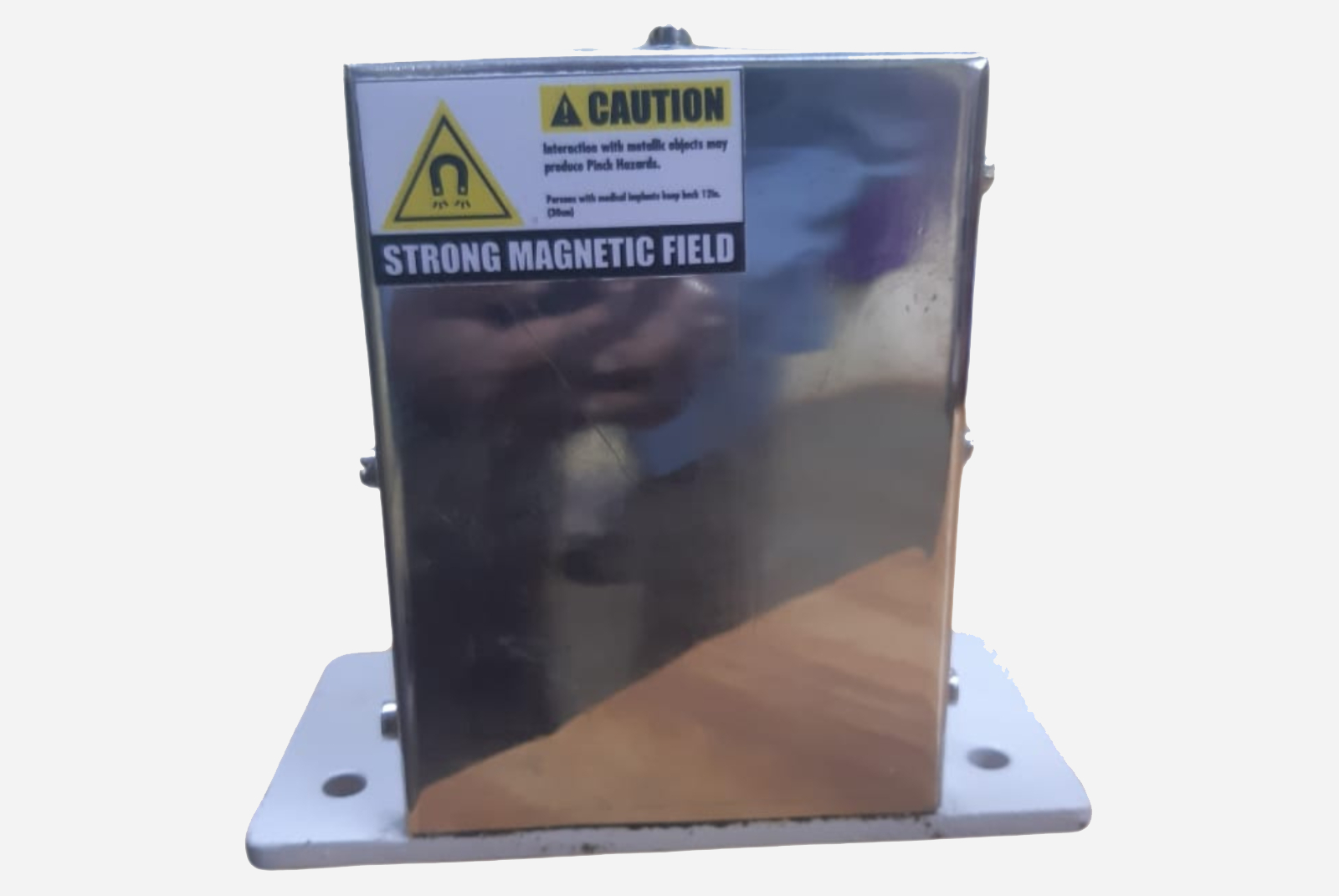

HELIX Magnetic Sheet Separators induce a magnetic field to the ferrous steel sheet stack. The induced magnetic field creates like magnetic polarity between the top and second sheets. Like magnetic polarity repels one another resulting in the top sheet pushing away from the lower sheet.

HELIX Magnetic Sheet Separators increase efficiency, production and safety while reducing the handling problems of stacked sheet steels. Magnetic Sheet Separators reduce marring, double-blanking and the need for prying sheet stock apart.

In addition to our standard line of Magnetic Sheet Separators, HELIX also offers specially designed Magnetic Sheet Separators to suit your specific application. Rare Earth Magnetic Sheet Separators are also available upon request.

Features

  • Guarantee of Permanent Magnet Strength
  • Durable 304 Stainless Steel construction standard
  • Finest of Magnetic Materials
  • Can be applied to manual as well as robotic press-feeding systems
  • Lift handle and counter-balanced base for stability

Benefits

  • Increase Safety, Productivity, Uptime & Profitability by reducing double-blanking
  • Reduce scrap loss
  • Reduce worker fatigue

Sheet Separators Table

SERIES - LITE

HEIGHT (A) WIDTH (B) THICKNESS (C)
MODEL NO. inch mm inch mm inch mm
HX-200 5.9 150 5.9 150 2.4 60
HX-201 9.8 250 5.9 150 2.4 60
HX-202 13.8 350 5.9 150 2.4 60
HX-203 17.7 450 5.9 150 2.4 60

SERIES - MED

HEIGHT (A) WIDTH (B) THICKNESS (C)
MODEL NO. inch mm inch mm inch mm
HX-300 9.8 250 7.9 200 100
HX-301 13.8 350 7.9 200 100
HX-302 17.7 450 7.9 200 100
HX-303 21.7 550 7.9 200 100

SERIES - HEAVY

HEIGHT (A) WIDTH (B) THICKNESS (C)
MODEL NO. inch mm inch mm inch mm
HX-400 9.8 250 9.8 250 5.0 127
HX-401 13.8 350 9.8 250 5.0 127
HX-402 17.7 450 9.8 250 5.0 127
HX-403 21.7 550 9.8 250 5.0 127

SERIES - RARE EARTH

HEIGHT (A) WIDTH (B) THICKNESS (C)
MODEL NO. inch mm inch mm inch mm
HX-RE-1 5.9 150 7.9 200 1.4 35
HX-RE-2 9.8 250 7.9 200 1.4 35
HX-RE-3 13.8 350 7.9 200 1.4 35
HX-RE-4 17.7 450 7.9 200 1.4 35

SHEET THICKNESS TABLE

Sheet Size 0.6 MM 1.5 MM 3 MM 5-6 MM
150 X 300 MM Use HX-200 Series Use HX-200 Series Use HX-300 Series Use HX-400 Series
300 X 300 MM Use HX-200 Series Use HX-300 Series Use HX-300 Series Use HX-400 Series
300 X 600 MM Use HX-200 Series Use HX-300 Series Use HX-400 Series Use HX-RE Series
600 X 600 MM Use HX-300 Series Use HX-400 Series Use HX-400 Series Use HX-RE Series
600 X 900 MM Use HX-300 Series Use HX-400 Series Use HX-RE Series Use HX-RE Series
900 X 900 MM Use HX-300 Series Use HX-400 Series Use HX-RE Series Use HX-RE Series
