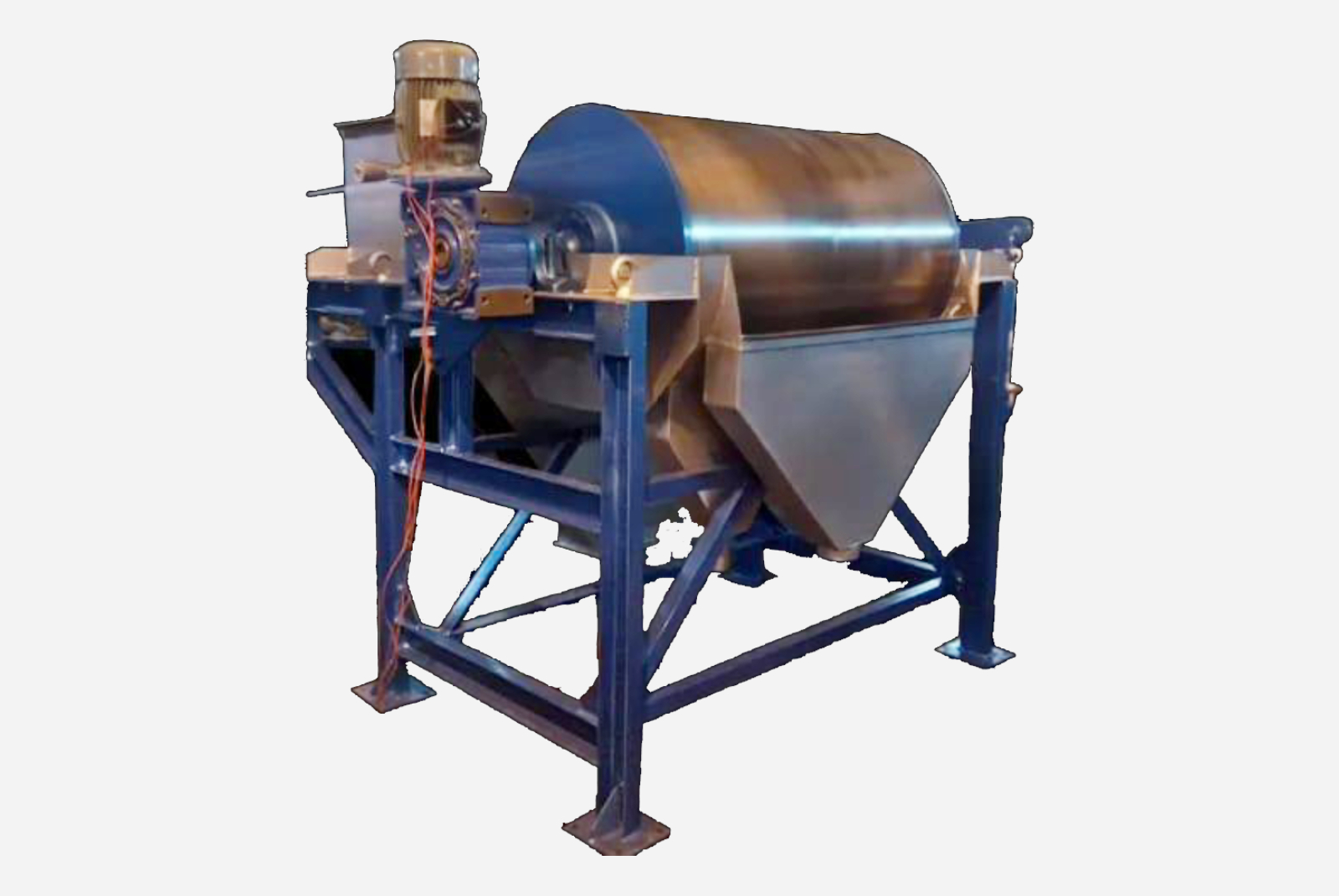

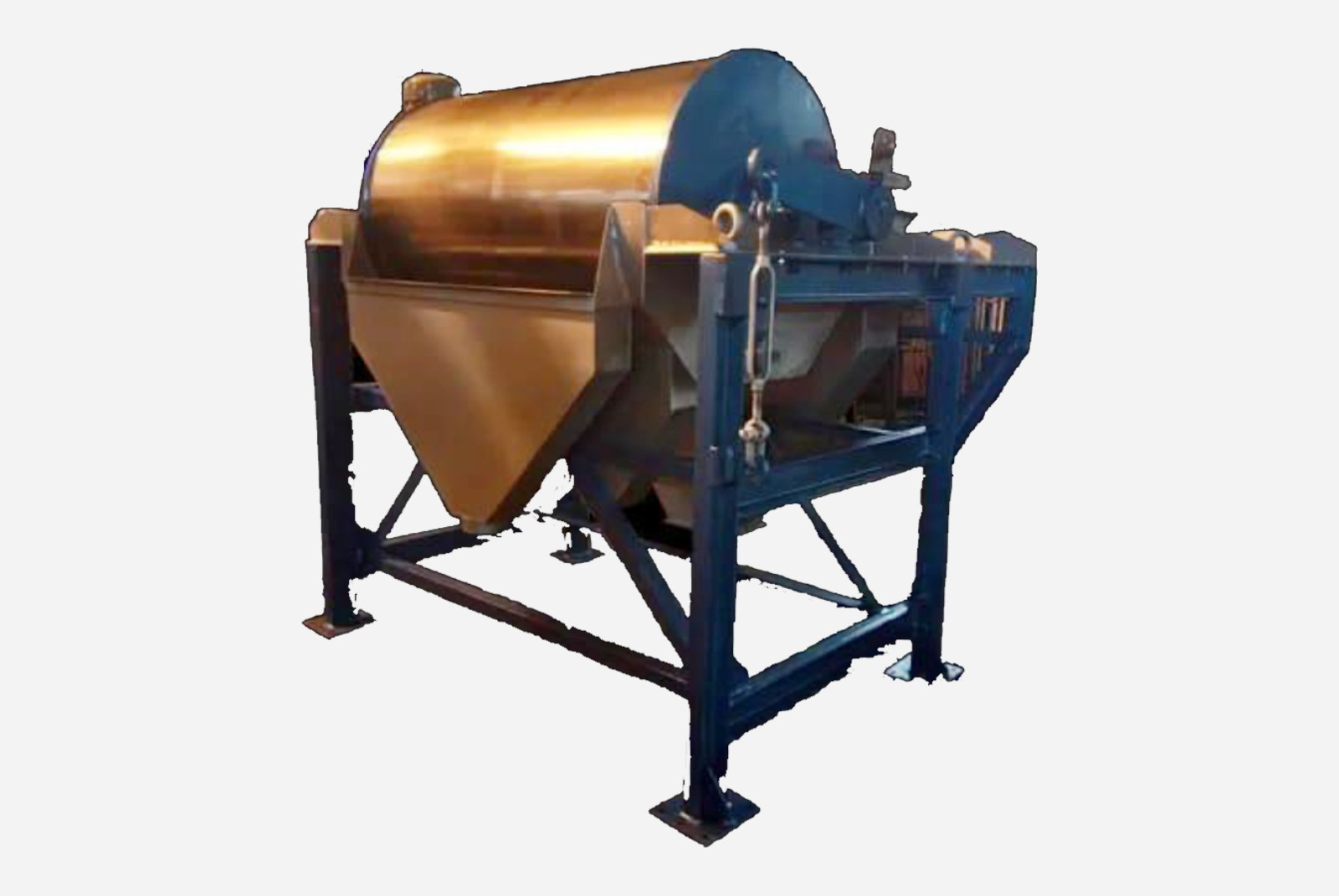

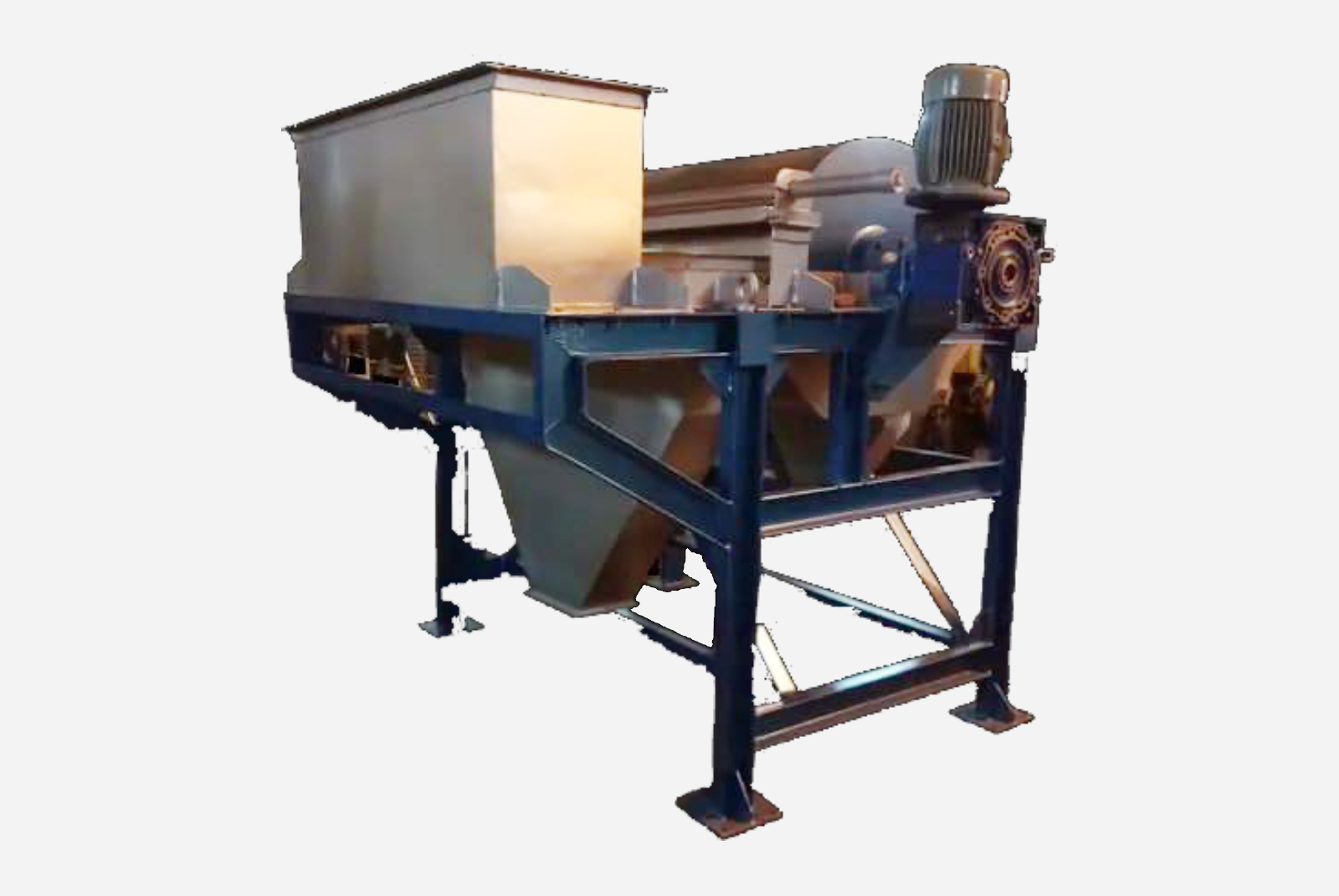

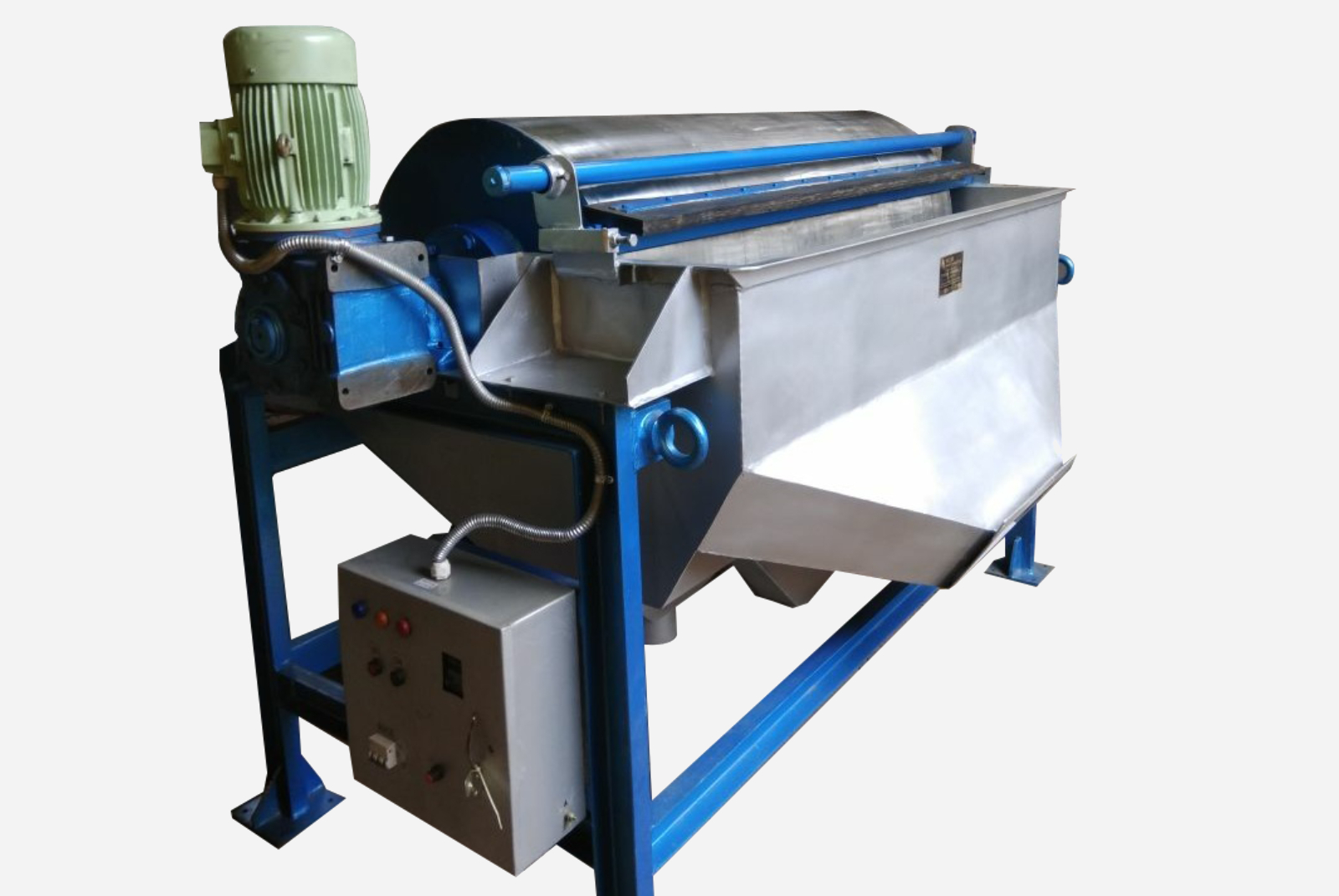

Our range of LIMS (Low Intensity Magnetic Separators) & MIMS (Medium Intensity Magnetic Separators) is widely used for removing fine magnetic components from liquids of low viscosity & concentration. Further, the range is used for varied processing industries such as recovery of Magnetite from ore, sea sand, coal etc. Typical Magnetic intensity ranges from 1500 ~ 1700 Gauss

Moreover, MIMS are used for improved efficiency, the range is incorporated with powerful neodymium iron boron magnets and stainless steel housing. Typical Magnetic intensity ranges from 3500 ~ 4500 Gauss

Working Principles of Wet Drum Magnetic Separator:

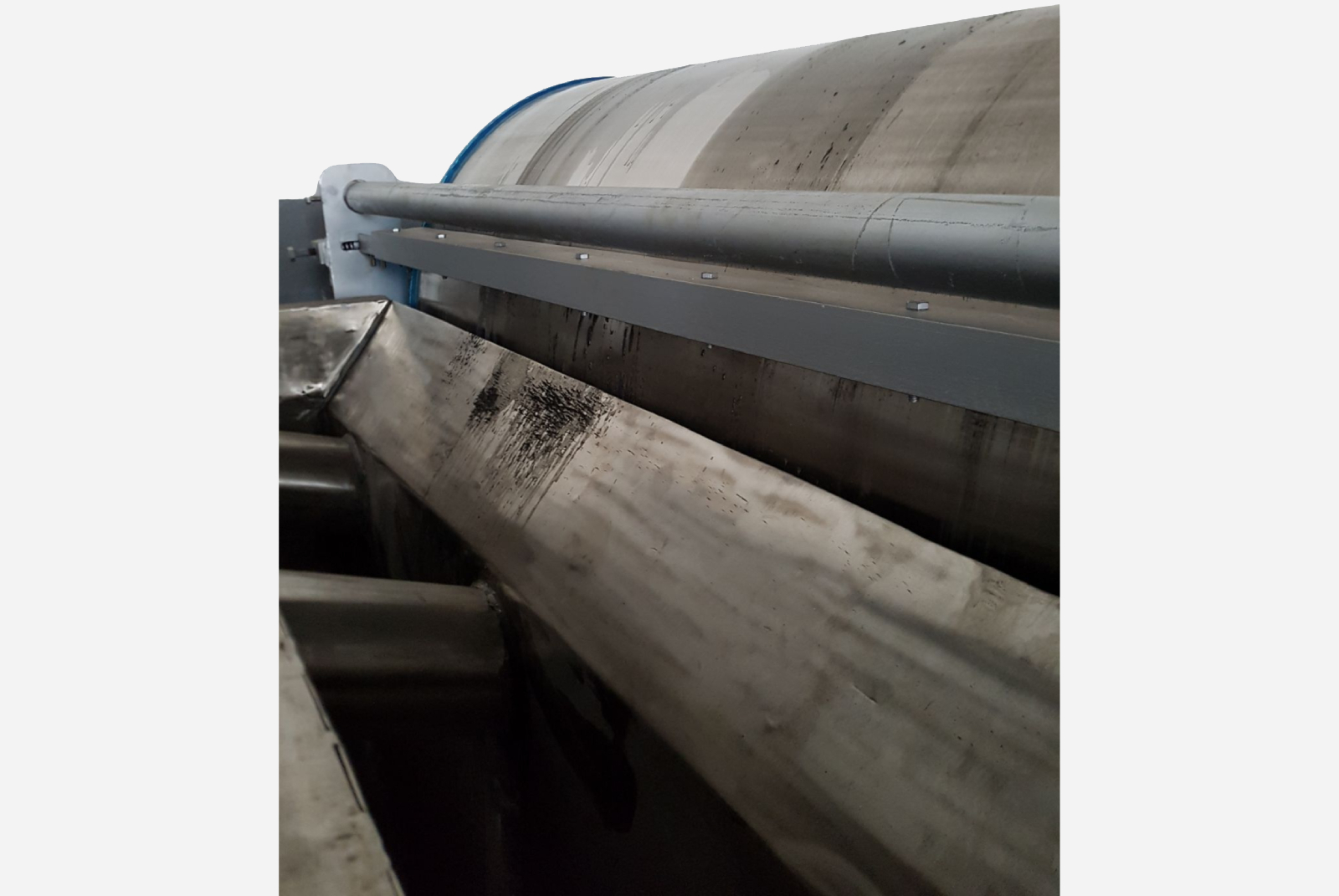

The liquid flows through a semi-circular separating chamber beneath a stainless steel drum to which the magnetisable particles are attracted. The strong, high-gradient magnetic field is created by a cylinder consisting of permanent magnetic discs positioned within the drum. These special permanent magnets generate particularly high field gradients which are necessary for successful separation, as is the need with all Magnetic-Separators.

Drum Dimension Capacity Motor Power Rotation
Model No. Diameter Length T/Hr M3/Hr Kw
HX-WD-01 400 600 1~3 5 1.1 45
HX-WD-02 600 600 1~10 16 1.1 40
HX-WD-03 600 900 8~15 24 1.1 40
HX-WD-04 600 1200 10~20 32 2.2 40
HX-WD-05 600 1800 15~30 48 2.2 40
HX-WD-06 750 1200 15~30 48 3 35
HX-WD-07 750 1800 20~45 72 3 35
HX-WD-08 900 1800 25~55 90 4 28
HX-WD-09 900 2400 35~70 110 4 28
HX-WD-10 1050 1800 40~75 120 5.5 22
HX-WD-11 1050 2100 45~88 140 5.5 22
HX-WD-12 1050 2100 45~88 140 5.5 22
HX-WD-13 1050 2400 52~100 160 5.5 22
HX-WD-14 1050 2400 52~100 160 5.5 22
HX-WD-15 1050 3000 65~125 200 7.5 22
HX-WD-16 1200 1800 47~90 140 5.5 19
HX-WD-17 1200 1800 47~90 140 5.5 19
HX-WD-18 1200 2400 82~120 192 7.5 19
HX-WD-19 1200 2400 82~120 192 7.5 19
HX-WD-20 1200 3000 80~150 240 7.5 19
HX-WD-21 1200 3000 80~150 240 7.5 19
HX-WD-22 1500 3000 90~170 270 11 14
HX-WD-23 1500 4000 115~220 350 11 14
