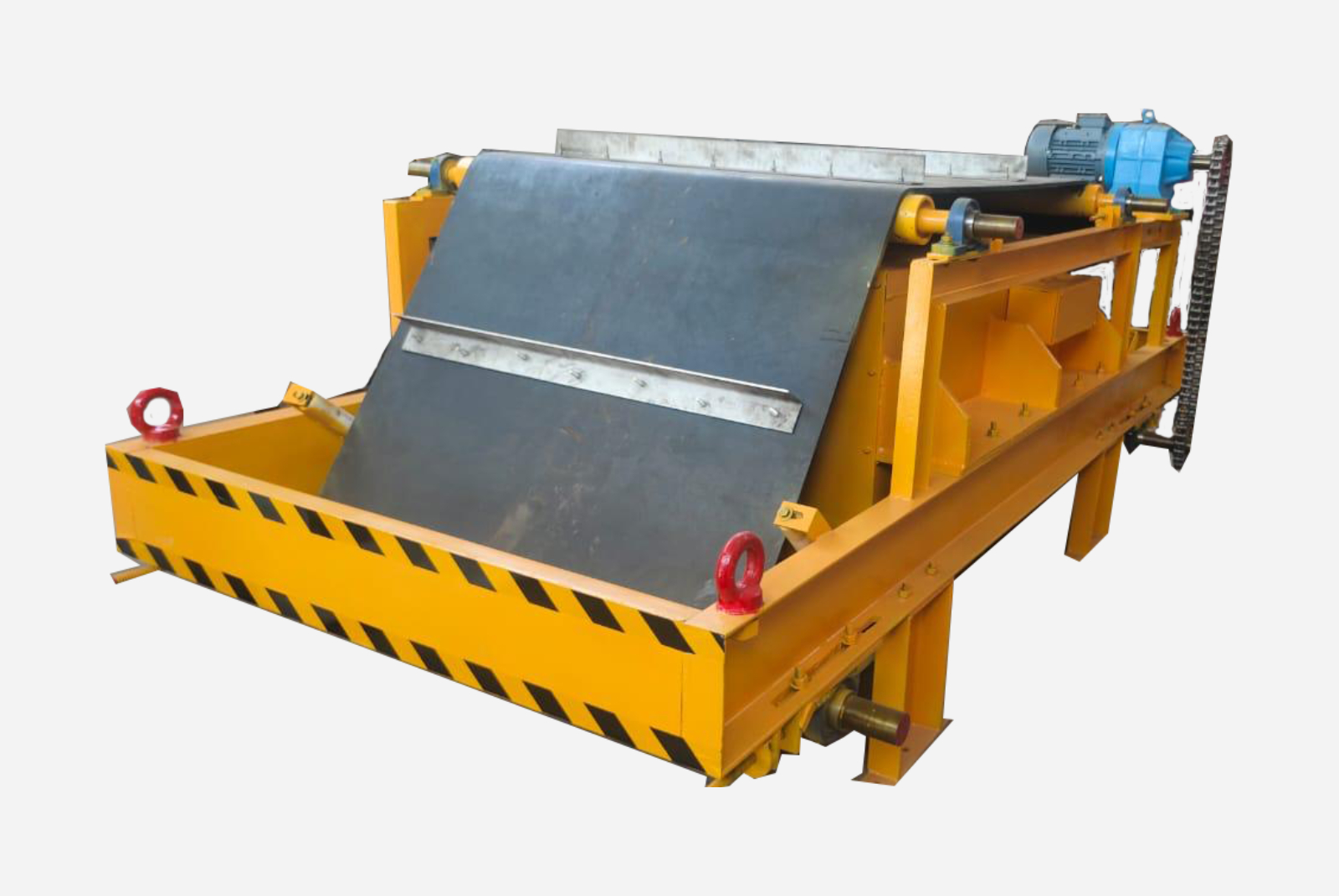

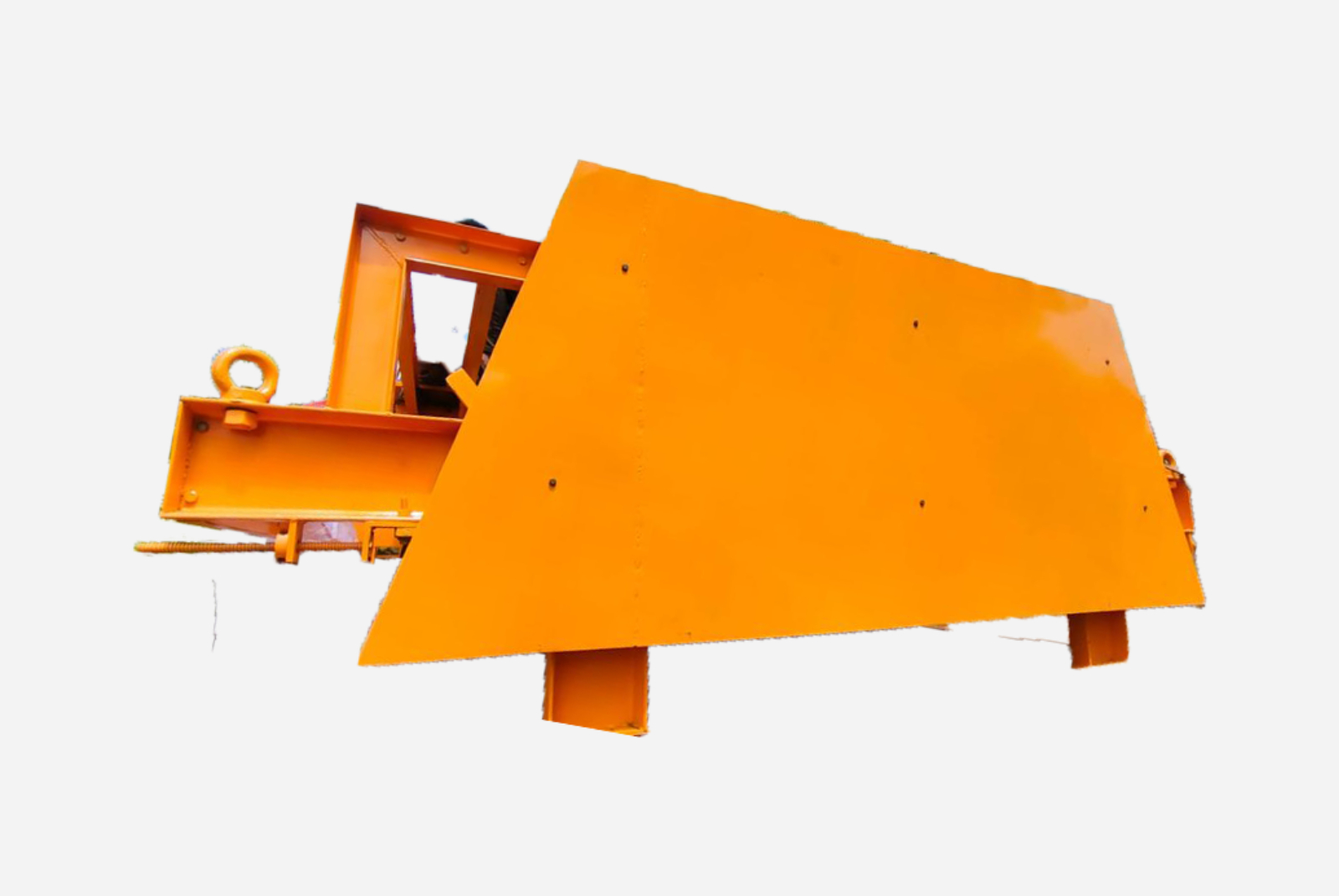

Electro Magnetic Overband Magnetic Separator (OBMS)
The Electro Magnetic Overband Magnetic Separator (OBMS) is a powerful, self-cleaning separator designed to remove ferrous contaminants automatically from conveyed material. Installed above conveyor belts, it ensures continuous and efficient tramp metal separation in industries where iron contamination can cause damage to processing equipment or affect product purity.
Key Features
- Heavy-duty welded steel construction with high-performance electromagnetic coil.
- Self-cleaning belt system for uninterrupted separation.
- Adjustable suspension height for various conveyor widths.
- Efficient heat dissipation with air or oil cooling options.
- Low maintenance and long service life.
Applications
Coal & Mining • Iron & Steel • Cement • Power Plants • Recycling • Foundries
Technical Specifications (Typical Range)
| Parameter | Specification |
|---|---|
| Magnet Type | Electromagnetic |
| Operating Height | Up to 450 mm |
| Belt Width | 400–2000 mm |
| Cleaning Type | Self-cleaning (cross belt) |
| Power Supply | 415V, 3-phase, 50 Hz |
| Cooling | Air / Oil Cooled |
Advantages
- Continuous removal of tramp iron.
- Protects conveyors and downstream equipment.
- Ideal for heavy-duty and high-capacity operations.
- Custom-built models available.

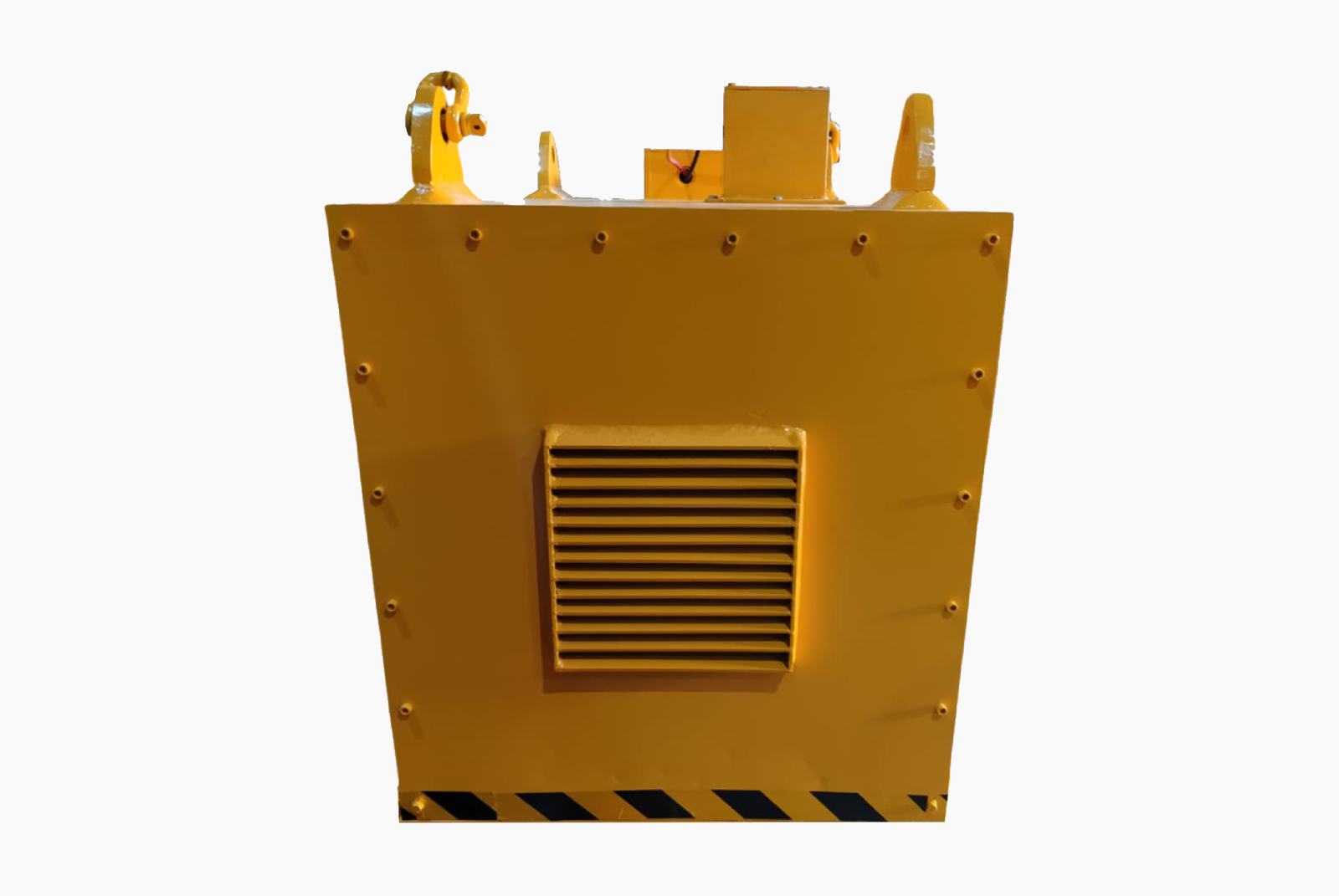

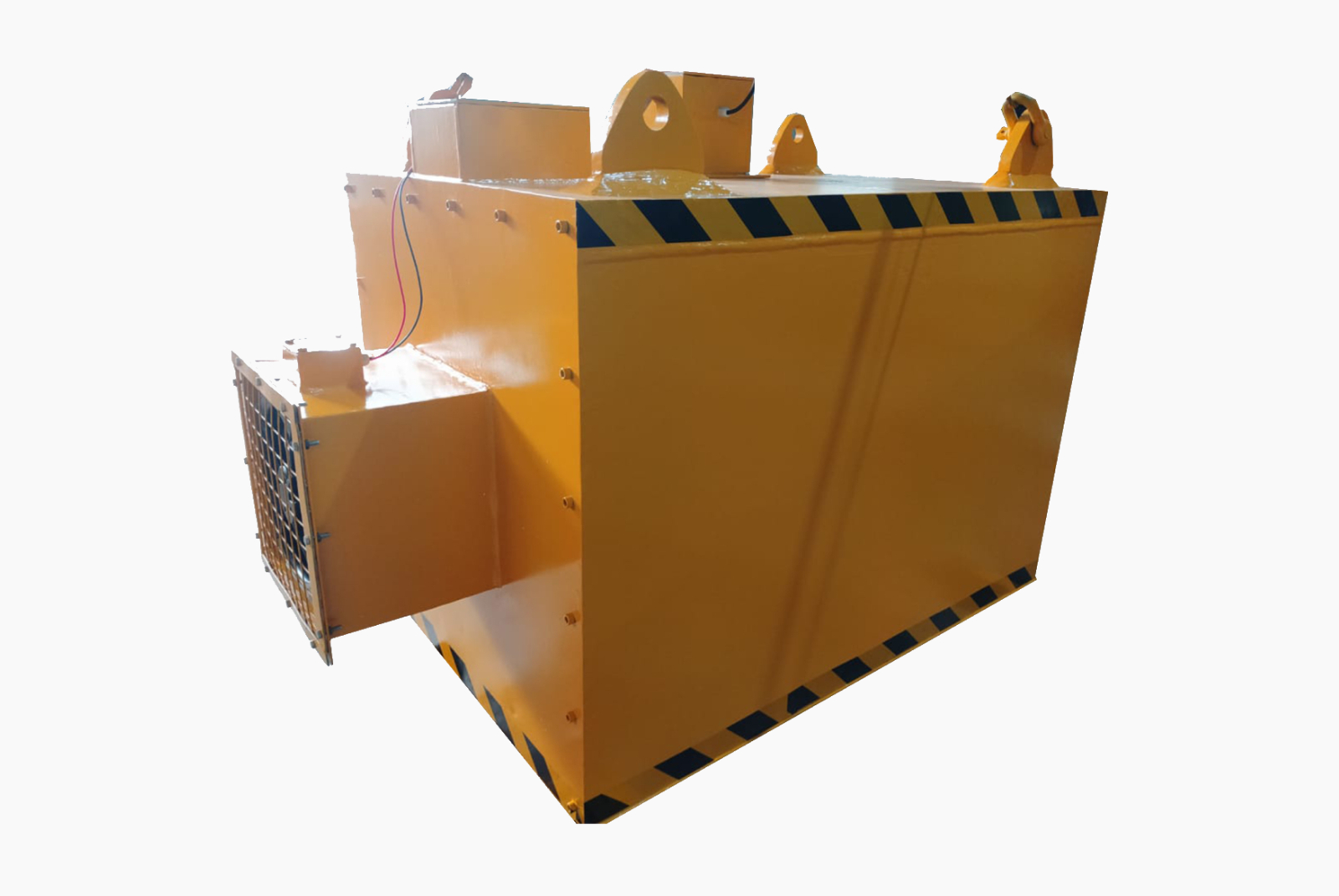

Electro Magnetic Suspended Magnet
The Electro Magnetic Suspended Magnet is a stationary separator installed above conveyor belts or material flow lines to extract unwanted ferrous metals. This manual cleaning separator is compact, energy-efficient, and ideal for low to medium contamination levels.
Key Features
- High magnetic intensity ensures deep penetration.
- Manual cleaning type for easy operation.
- Compact design with low power consumption.
- Optional oil or air cooling systems.
- Rugged construction for continuous duty.
Applications
Cement • Coal • Sponge Iron • Foundries • Fertilizer • Food & Grain Processing
Technical Specifications (Typical Range)
| Parameter | Specification |
|---|---|
| Magnet Type | Electromagnetic |
| Cleaning Type | Manual |
| Suspension Height | Up to 350 mm |
| Cooling | Air / Oil Cooled |
| Power Supply | 415V, 3-phase, 50 Hz |
| Duty Cycle | Continuous |
Advantages
- Economical magnetic separation solution.
- Compact and adaptable to existing systems.
- Protects crushers, grinders, and screens from tramp metal.
- Available in custom sizes for specific requirements.
Why Choose HELIX SUE MAGNETS
HELIX SUE MAGNETS designs and manufactures high-performance electromagnetic separation systems for heavy industrial applications. Our equipment delivers precision, durability, and efficiency, backed by strong after-sales support and proven results across steel, cement, and mining industries.
